Rubber 3D PROtection Custom
C0012TDI03004

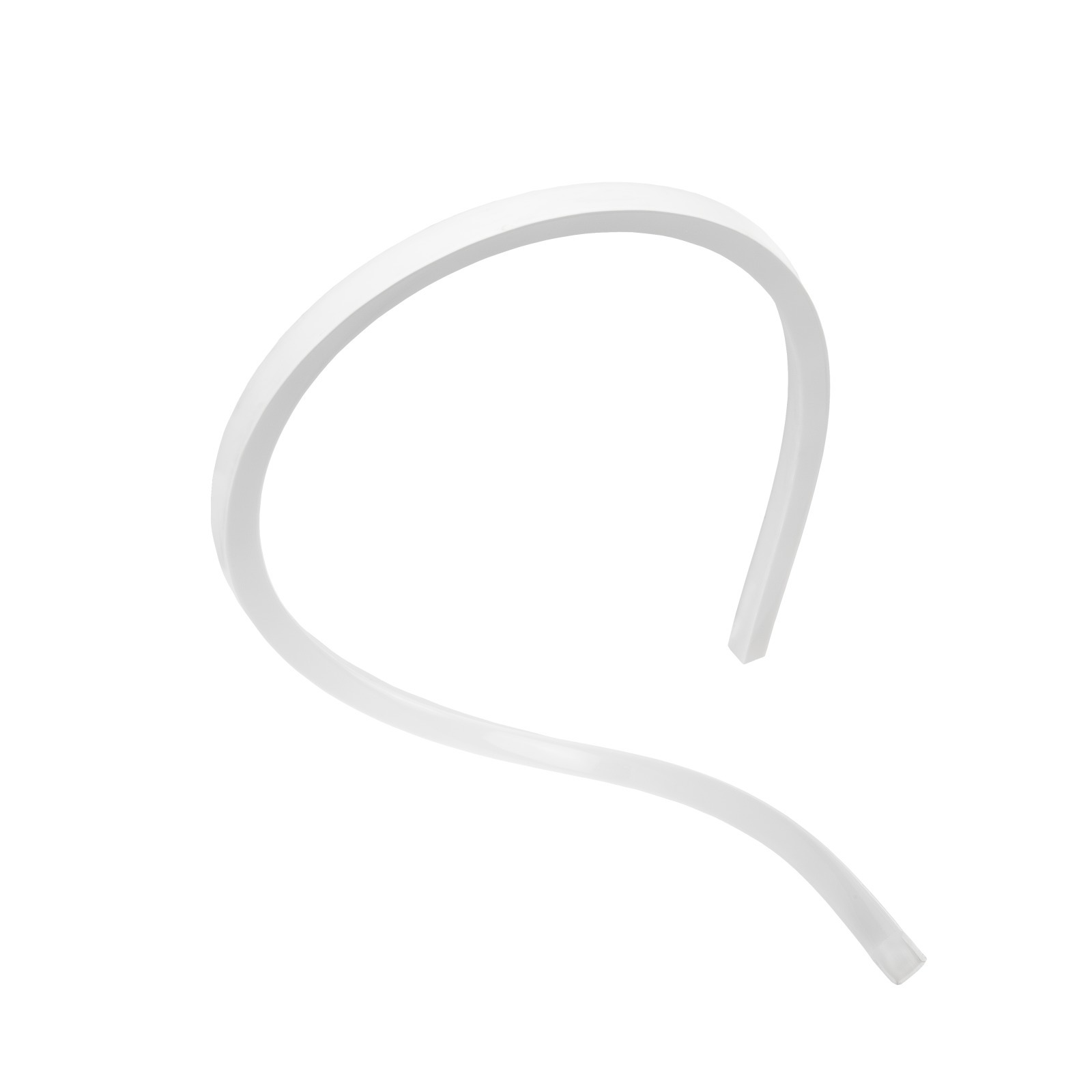

Submerged - LED Strip
112 topLED 0.6 - 95.4 W DC
| IP | IP68 |
|---|---|
| IK | 07 |
| Optic | Diffused |
| CCT | 3500 K |
| CRI | >90 |
| Delivered lumens | -- |
| Finishes | Text white RAL 9003 |
| Installation position | Wall lights, Ceiling |
| Control | |
| Source Type | topLED |
| List price (excl. VAT) | 430,00 € |
| Product category | D |
Technical description
Single emission submerged or led strip for outdoor application. The brilliant white LED light source with a diffused light distribution is composed of 112 topled LEDs with CCT of 3500 K and a CRI >90; the source luminous flux is 3474 lm, with a 120.6 lm/W nominal luminous efficacy.
The device body is made of technopolymer and features a white finish; the diffuser is made of pu.
The ingress protection degree is IP68; the total weight is of 0.3 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 28.8 W The power supply cable is included and features a 10 m length.
The device features protection class III and can be wall lights or ceiling-mounted with an outer casing, code C-C300001(for concrete or masonry).
Compliant with the EN 60598-1 standard and its specific provisions.
Electronics
Code 99374
Reson_75 | On/Off Driver - Output 3.12A 24V 1-75W | On/Off Driver 198~264V AC / 176~275V DC 75 W
| Family | On/Off Driver |
|---|---|
| IP | IP40 |
| Operation | CV |
Code 99332
Reson_150 | 0/1-10V Driver 24 V - Output 6.25A 24V 1-150W | 1-10V Controller
| Family | Controller |
|---|---|
| IP | IP65 |
| Operation |
Code 99331
Reson_150 | On/Off Driver 24V - Output 6.25A 24V 1-150W | On/Off Driver 198~264V AC / V DC
| Family | On/Off Driver |
|---|---|
| IP | IP65 |
| Operation |
Code 83333
Power | DALI2 PUSH driver 24V - Output 6.3A 24V 1-150W | Push and Simply Dim Controller
| Family | Controller |
|---|---|
| IP | IP67 |
| Operation |
You've seen 4 products out of 5
