Straight_P1
8205
Indoor / Pendant Lights
Pendant Luminaires | 220-240 V
3 topLED 15 W DC - 18 W AC











| IP | IP20 |
|---|---|
| Optic | Diffused |
| Degrees | 148.2° |
| CCT | 2700 K |
| CRI | 90 |
| Delivered lumens | 790 lm |
| Finishes | Text black RAL 9005 |
| Installation position | Ceiling |
| Control | |
| Efficiency | 43.9 lm/W |
| Source Type | topLED |
| List price (excl. VAT) | 265,00 € |
| Product category | A |
Technical description

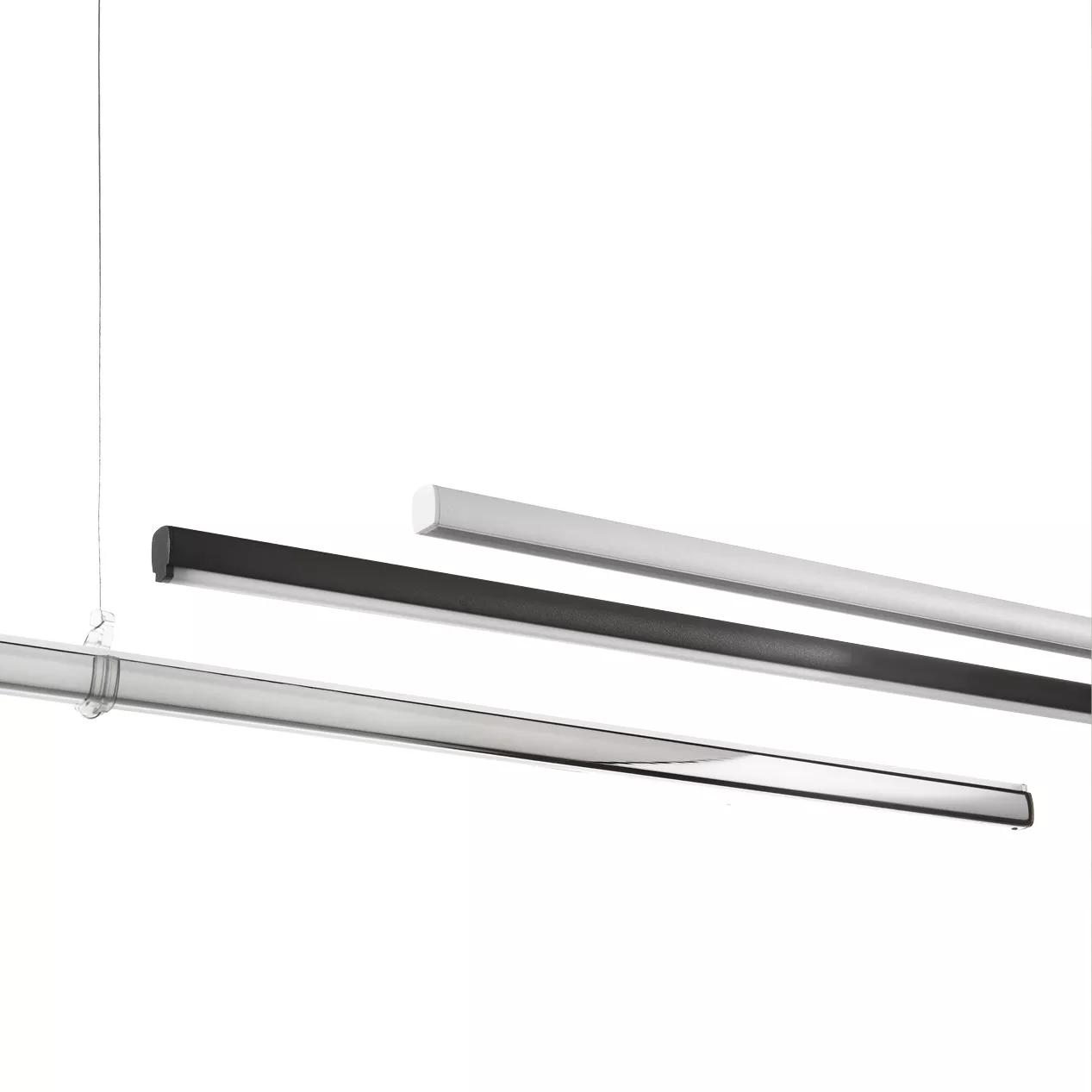

Single emission pendant luminaires for indoor application. The warm white LED light source with a diffused light distribution is composed of 150 topled LEDs with CCT of 2700 K and a CRI 90; the source luminous flux is 2222 lm, with a 148.1 lm/W nominal luminous efficacy.
The device body is made of aluminium and features a text black ral9005 finish, processed by means of coating; the diffuser is made of PC; the mounting frame is made of iron, with a text black ral9005 finish, processed by means of coating.
The ingress protection degree is IP20; the total weight is of 1.2 kg.
The total absorbed power is 18 W The power supply cable is included and features a 2.5 m length.
The device features protection class I and can be ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
