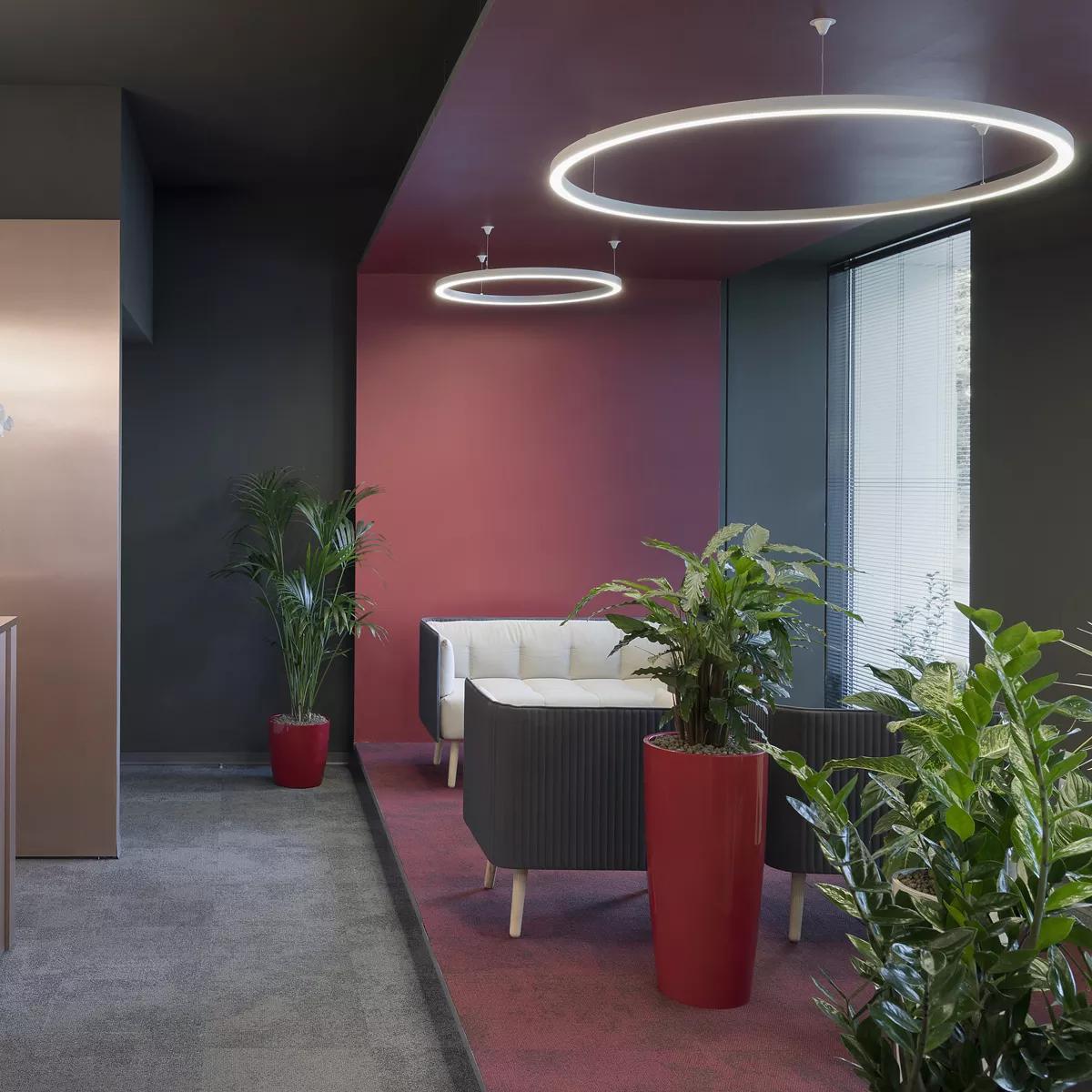

Tour_PD
C00416WHWDI
Indoor / Pendant Lights
Pendant Luminaires
648 topLED 114 W DC 24 V
| IP | IP40 |
|---|---|
| Optic | Diffused |
| Degrees | 155.6° |
| CCT | 3000 K |
| CRI | 90 |
| Delivered lumens | 7545 lm |
| Finishes | Text white RAL 9003 |
| Installation position | Ceiling |
| Control | |
| Efficiency | 66.2 lm/W |
| Source Type | topLED |
| List price (excl. VAT) | 1917,00 € |
| Product category | A |
Technical description
Single emission pendant luminaires for indoor application. The warm white LED light source with a diffused light distribution is composed of 648 topled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 14094 lm, with a 123.6 lm/W nominal luminous efficacy.
The device body is made of aluminium alloy 6060 and features a text white ral9003 finish, processed by means of powder coating with thermosetting powders; the diffuser is made of silicone.
The ingress protection degree is IP40; the total weight is of 11 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 114 W The power supply cable is included and features a 4.85 m length.
The device features protection class III and can be ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Electronics
Code 99722
Stormshield | DALI Driver 24V - Output 5A 24V 1-120W | DALI Controller
| Family | Controller |
|---|---|
| IP | IP67 |
| Operation |
Code 99332
Reson_150 | 0/1-10V Driver 24 V - Output 6.25A 24V 1-150W | 1-10V Controller
| Family | Controller |
|---|---|
| IP | IP65 |
| Operation |
Code 99331
Reson_150 | On/Off Driver 24V - Output 6.25A 24V 1-150W | On/Off Driver 198~264V AC / V DC
| Family | On/Off Driver |
|---|---|
| IP | IP65 |
| Operation |
Code 83333
Power | DALI2 PUSH driver 24V - Output 6.3A 24V 1-150W | Push and Simply Dim Controller
| Family | Controller |
|---|---|
| IP | IP67 |
| Operation |
You've seen 4 products out of 5
