Vedette_Q

97051M05

Outdoor / Wall lighting

Wall Lights | 198-264 V

3 x powerLEDs 6 W DC - 7.2 W AC

IP
IP65
IK
07
Optic
Ultra Spot
Degree
CCT
2700 K
CRI
80
Delivered lumens
75 lm
Finishes
Dark brown
Installation position
Wall lights
Control
Efficiency
10.4 lm/W
Source Type
powerLEDs

Single emission wall lights for outdoor application. The super warm white LED light source with a ultra spot light distribution is composed of 3 powerled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 657 lm, with a 109.5 lm/W nominal luminous efficacy.

The device body is made of die-cast aluminium en ab - 46100 and features a dark brown finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP65; the total weight is of 0.96 kg.

The total absorbed power is 7.2 W. The power supply cable is included and features a 1 m length.

The device features protection class I and can be wall lights-mounted.

Compliant with the EN 60598-1 standard and its specific provisions.

Electronics

Code LED-ALI823-R

Penny | On/Off Driver | On/Off Driver 198~264V AC

FamilyOn/Off Driver
IPIP65
OperationCC
Penny | On/Off Driver |   On/Off Driver 198~264V AC
.zip

You've seen 1 product out of 1

Downloads

Documentation

Data sheet

.pdf

Instruction sheet

.pdf

Product image

.jpeg

Specification text

.txt

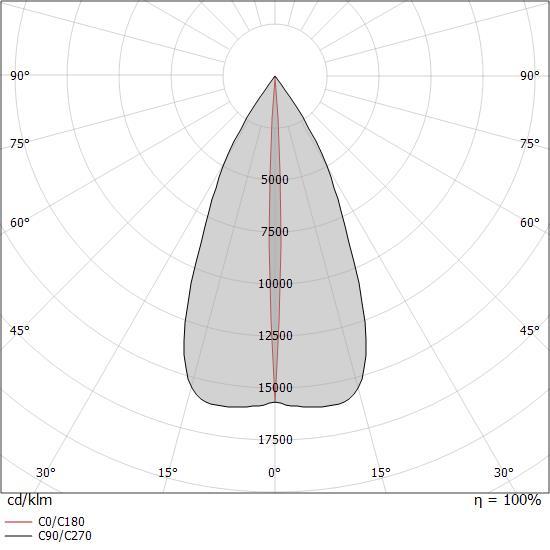

Photometric data

2D/3D Drawings
