referenceEntityMongo

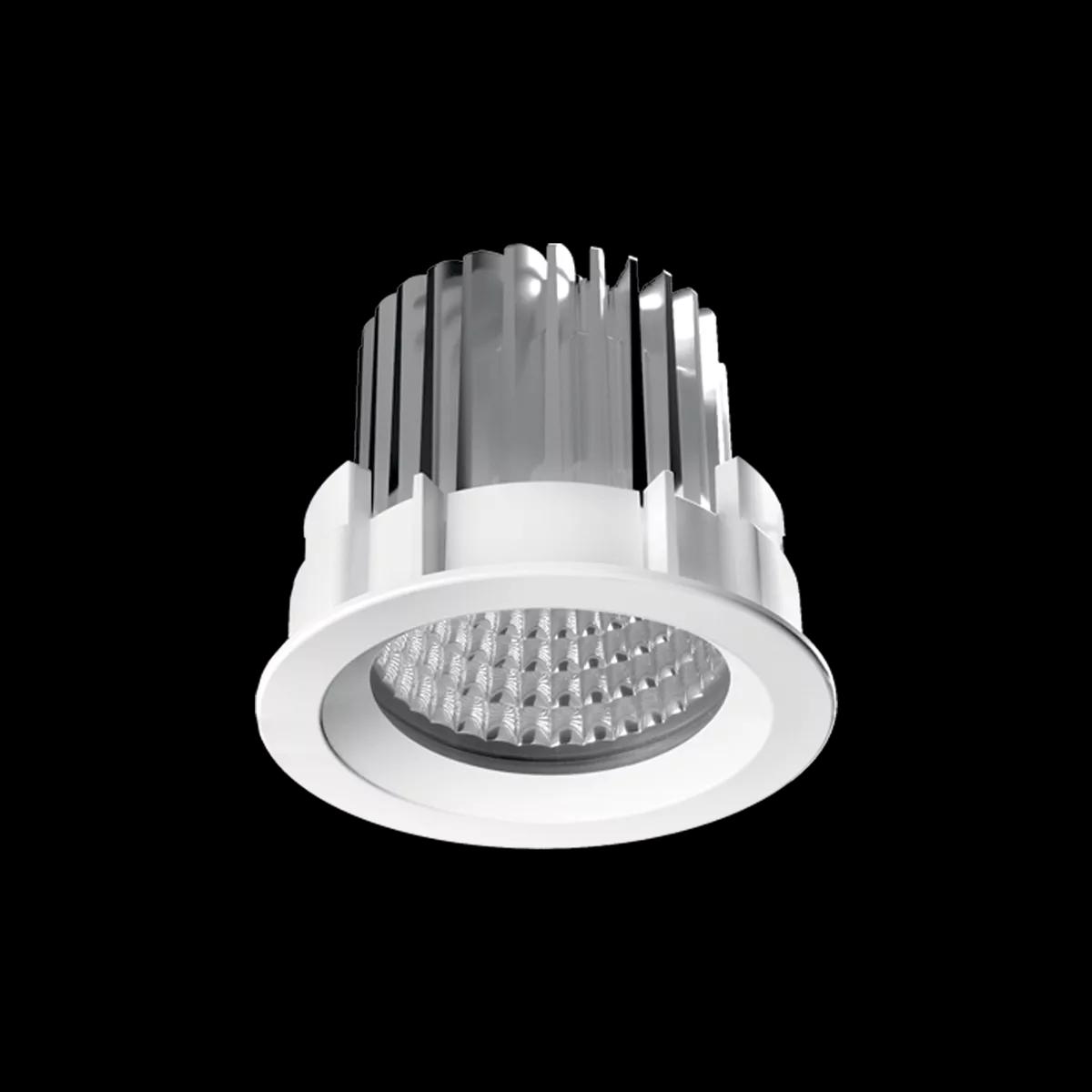

Single emission recessed downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 748 lm, with a 115.1 lm/W nominal luminous efficacy.The device body is made of uv resistant polycarbonate and features a text white ral9003 finish, processed by means of liquid painting; the diffuser is made of uv resistant polycarbonate.The ingress protection degree is IP44; the total weight is of 0.156 kg. The power supply driver is not provided and is to be ordered separately.The total absorbed power is 6.5 W The power supply cable is included and features a 0.15 m length.The device features protection class III and can be ceiling-mounted, with a 64 mm diameter hole (in plasterboard).Compliant with the EN 60598-1 standard and its specific provisions.

Data sheet

Instruction sheet

Base Eulumdat C00177WHWFL

Base IESNA C00177WHWFL

BIM .rfa

Product dimensions

Product image

Specification text

Cob44_R

ProductLeaf

Leon - On/Off Driver - Output 700mA 37V 25W |   On/Off Driver 198~264V AC

Simon - 0/1-10V Multi Current - Output 500/700/800mA 9/12V 6-10W |  1-10V  Multi Power 198~264V AC / V DC

Simon - On/Off Driver - Output 500/700/800mA 9-12V 6-10W |   Multi Power 198~264V AC / 180~275V DC

Simon_PRO - DALI2 Push and Simply Dim Multi Current - 500/700/800mA 9/13V 10W |  Push and Simply Dim  Controller

Argo_PRO - DALI2 Push and Simply - Output 700mA 15-37V 10.5/26W |  Push and Simply Dim  Controller

C00177WHWFL
